Lieu d'origine:
LA CHINE
Nom de marque:
Z&H
Numéro de modèle:
32318
Overview

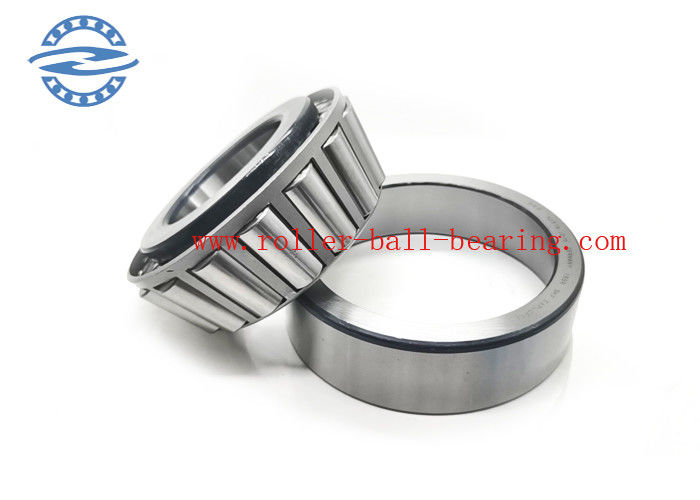

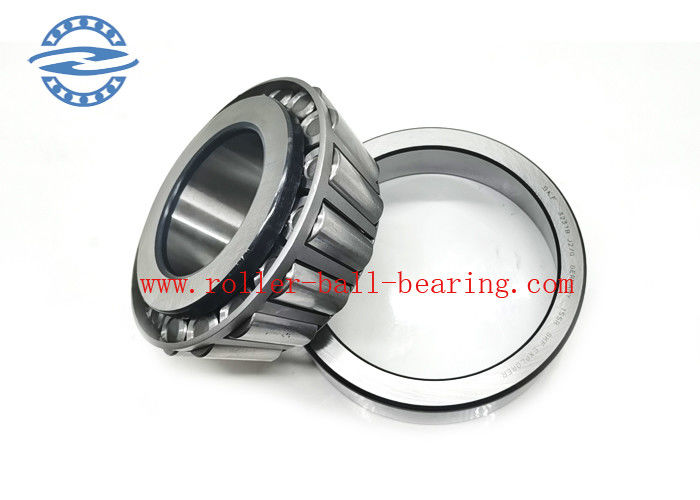

Tapered roller bearings have an outer ring with an inner ring and a set of tapered rollers with an inner ring assembly consisting of a basket cage. The outer ring can be separated from the inner ring assembly. In accordance with the ISO standard for the dimensions of tapered roller bearings, the outer ring or inner ring assembly of any standard tapered roller bearing shall be interchangeable with the outer ring or inner ring assembly of the same type internationally. That is, the outer ring of the same type shall comply with ISO492 (GB307) in addition to the external dimension and tolerance, the cone Angle of the inner ring assembly, the cone diameter of the assembly, etc., must also comply with the relevant
provisions of the exchange.The cone Angle of the raceway of the outer ring of tapered roller bearing is between 10° and 19°, and it can bear the combined action of axial and radial load at the same time. The larger the cone Angle is, the greater the axial load bearing capacity is. Bearing with large taper Angle, rear code plus B, cone.
Different Type
Deep Groove Ball Bearing
Taper Roller Bearing
Needle Roller Bearing
Spherical Plain Bearing
Other models
| Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||
| d | D | T | KG | d | D | T | KG | ||
| 30202 | 15 | 35 | 11 | 0.053 | 30302 | 15 | 42 | 13 | 0.098 |
| 30203 | 17 | 40 | 13.25 | 0.079 | 30303 | 17 | 47 | 15.25 | 0.129 |
| 30204 | 20 | 47 | 15.25 | 0.126 | 30304 | 20 | 52 | 16.25 | 0.165 |
| 30205 | 25 | 52 | 16.25 | 0.154 | 30305 | 25 | 62 | 18.25 | 0.263 |
| 30206 | 30 | 62 | 17.25 | 0.231 | 30306 | 30 | 72 | 20.75 | 0.387 |
| 30207 | 35 | 72 | 18.25 | 0.331 | 30307 | 35 | 80 | 22.75 | 0.515 |
| 30208 | 40 | 80 | 19.75 | 0.422 | 30308 | 40 | 90 | 25.25 | 0.747 |
| 30209 | 45 | 85 | 20.75 | 0.474 | 30309 | 45 | 100 | 27.25 | 0.984 |
| 30210 | 50 | 90 | 21.75 | 0.529 | 30310 | 50 | 110 | 29.25 | 1.28 |
| 30211 | 55 | 100 | 22.75 | 0.713 | 30311 | 55 | 120 | 31.5 | 1.63 |
| 30212 | 60 | 110 | 23.75 | 0.904 | 30312 | 60 | 130 | 33.5 | 1.99 |
| 30213 | 65 | 120 | 24.75 | 1.13 | 30313 | 65 | 140 | 36 | 2.44 |
| 30214 | 70 | 125 | 26.25 | 1.26 | 30314 | 70 | 150 | 38 | 2.98 |
| 30215 | 75 | 130 | 27.25 | 1.36 | 30315 | 75 | 160 | 40 | 3.57 |
| 32203 | 17 | 40 | 17.25 | 0.102 | 32304 | 20 | 52 | 22.25 | 0.23 |
| 32204 | 20 | 47 | 19.25 | 0.16 | 32305 | 25 | 62 | 25.25 | 0.368 |
| 32205 | 25 | 52 | 19.25 | 0.187 | 32306 | 30 | 72 | 28.75 | 0.562 |
| 32206 | 30 | 62 | 21.25 | 0.287 | 32307 | 35 | 80 | 32.75 | 0.763 |
| 32207 | 35 | 72 | 24.25 | 0.445 | 32308 | 40 | 90 | 35.25 | 1.04 |
| 32208 | 40 | 80 | 24.75 | 0.532 | 32309 | 45 | 100 | 38.25 | 1.4 |
| 32209 | 45 | 85 | 24.75 | 0.573 | 32310 | 50 | 110 | 42.25 | 1.89 |
| 32210 | 50 | 90 | 24.75 | 0.626 | 32311 | 55 | 120 | 45.5 | 2.37 |
| 32211 | 55 | 100 | 26.75 | 0.853 | 32312 | 60 | 130 | 48.5 | 2.9 |
| 32212 | 60 | 110 | 29.75 | 1.17 | 32313 | 65 | 140 | 51 | 3.51 |
| 32213 | 65 | 120 | 32.75 | 1.55 | 32314 | 70 | 150 | 54 | 4.34 |
| 32214 | 70 | 125 | 33.25 | 1.64 | 32315 | 75 | 160 | 58 | 5.37 |
| 32215 | 75 | 130 | 33.25 | 1.74 | 32316 | 80 | 170 | 61.5 | 6.38 |
| 32004X | 20 | 42 | 15 | 0.095 | 33005 | 25 | 47 | 17 | 0.129 |
| 32005X | 25 | 47 | 15 | 0.11 | 33006 | 30 | 55 | 20 | 0.201 |
| 32006X | 30 | 55 | 17 | 0.17 | 33007 | 35 | 62 | 21 | 0.25 |
| 32007X | 35 | 62 | 18 | 0.224 | 33008 | 40 | 68 | 22 | 0.306 |
| 32008X | 40 | 68 | 19 | 0.267 | 33009 | 45 | 75 | 24 | 0.398 |
| 32009X | 45 | 75 | 20 | 0.337 | 33010 | 50 | 80 | 24 | 0.433 |
| 32010X | 50 | 80 | 20 | 0.366 | 33011 | 55 | 90 | 27 | 0.651 |
| 32011X | 55 | 90 | 23 | 0.551 | 33012 | 60 | 95 | 27 | 0.691 |
| 32012X | 60 | 95 | 23 | 0.584 | 33013 | 65 | 100 | 27 | 0.732 |
| 32013X | 65 | 100 | 23 | 0.62 | 33014 | 70 | 110 | 31 | 1.07 |
| 32014X | 70 | 110 | 25 | 0.839 | 33015 | 75 | 115 | 31 | 1.12 |
| 32015X | 75 | 115 | 25 | 0.872 | 33016 | 80 | 125 | 36 | 1.63 |
Packaging and Logistics
FAQ
If you have any other questions, please feel free to contact us as follows.
Q: Why did you choose us?
A. We provide the best quality bearings with reasonable price, low friction, low noise and long service life.
B. With sufficient stock and fast delivery, you can choose our freight forwarder or your freight forwarder.
C. The best service provided by a well-trained international sales team.
Q: Do you accept small orders?
100% quality check, once your bearings are standard size bearings, even one, we also accept.
Q: How long is your delivery time?
Generally speaking, if the goods are in stock, it is 1-3 days. If the goods are out of stock, it will take 6-10 days, depending on the quantity of the order.
Q: Do you provide samples? Is it free or extra?
Yes, we can provide a small amount of free samples. Do you mind paying the freight?
Q: What should I do if I don't see the type of bearings I need?
We have too many bearing series numbers. Sometimes we can't put them all on Alibaba. Just send us the inquiry and we will be very happy to send you the bearing details.
